PRODUCT DETAILS
Watch our NEW PHT video that shows you just why you have to have this machine in your business. Click here

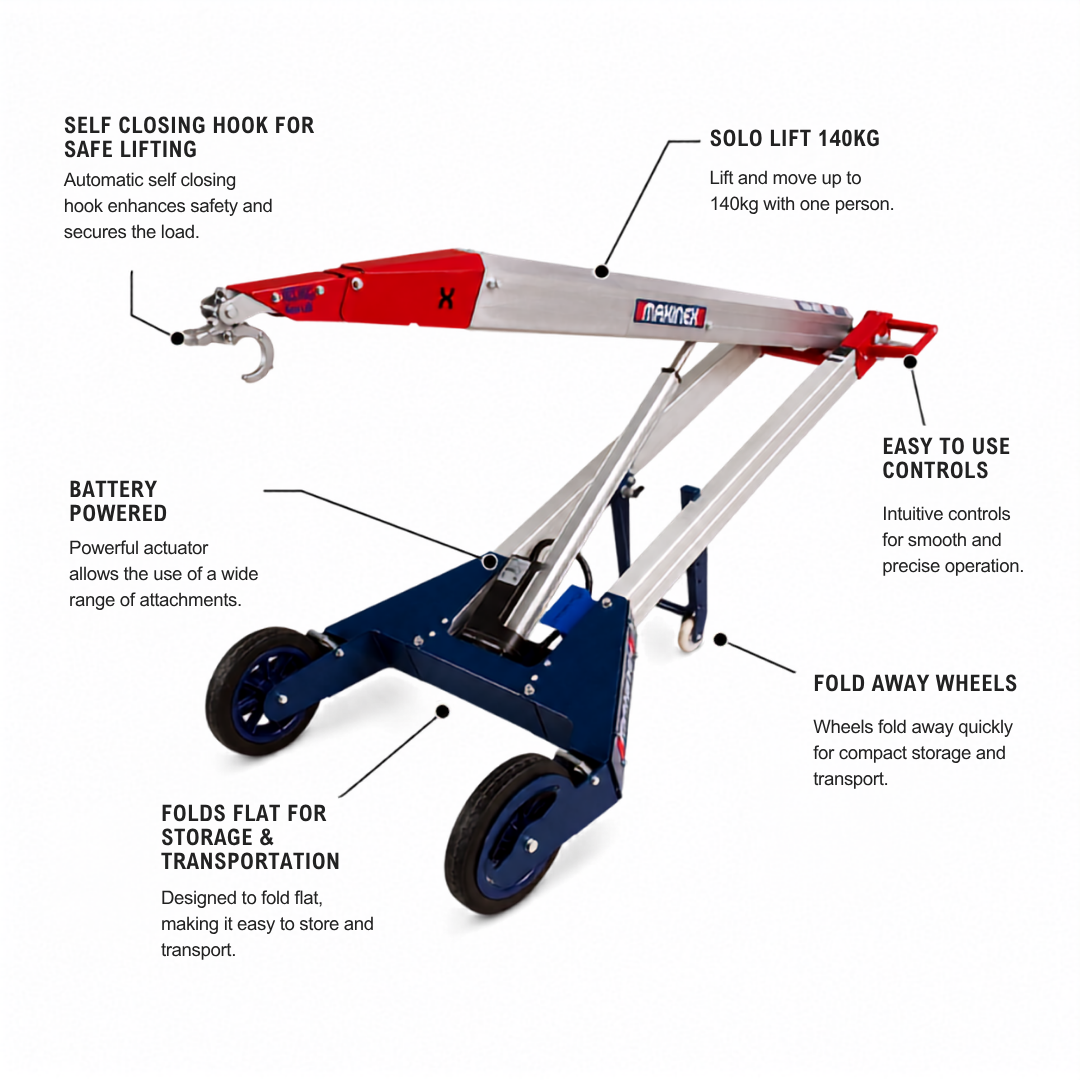

The Makinex Powered Hand Truck PHT-140, previously known as the OneLIFT, is a universal materials handling solution that enables one person operation to safely lift and load small equipment or bulky goods weighing up to 140kg (309lbs). It provides a quick and easy alternative to using a forklift or tailgate loader for small loads.
The Makinex Powered Hand Truck has many applications and can be used in workshops, warehouses, factories, depots, distribution companies, and hire and rental yards.
The Makinex Powered Hand Truck features powered lift via a 12V 25 Amp linear actuator. It is easy to operate – the lifting arm reach is controlled by the user lifting or lowering the handles and arm height is controlled via a simple thumb switch.
The unique design enables one person operation to lift and load directly into vehicles (trucks, vans, utes and cars) or to place equipment and small loads on bench tops. It eliminates awkward and dangerous one or two person lifts and reduces the incidence of back and other injuries caused by heavy lifting.
The Makinex Powered Hand Truck is lightweight and easy to manoeuvre. After use it can be folded down flat for easy transport and storage.
The Makinex Powered Hand Truck comes standard with a Hook attachment for lifting, moving and loading small equipment and machinery fitted with a lifting eye, e.g. water pumps, generators, air compressors, plate compactors etc.
A Fork attachment for lifting, moving and loading small pallets and skids is optional and sold separately.
To view the PHT-140 Training Video click on the video in the gallery.
ACCSSEORIES
We have a full range of product accessories that help you to safely lift and load various shapes and sizes.
Find out about these here DOWNLOAD THE ACCESSORIES FLYER HERE
** Product Patent Pending and Registered Design
SPECIFICATIONS
| Machine Weight (without attachments) | Total 40kg (88lbs) Handle end – 15kg (33lbs) Wheel end – 25kg (55lbs) |
| Weight of Hook attachment only | 1.6kg (3.5lbs) |
| Weight of Fork attachment only | 12kg (26.5lbs) |
| Lift Capacity | Up to 140kg (309lbs) |
| Lift Range / Height (of Hook attachment) | 0.3m (1ft) up to 1.9m (6ft 2in) |
| Lift Range / Height (of Fork attachment) | Ground level up to 1.55m (5ft 1in) |
| Machine Dimensions | L2000mm (6ft 6in) x W740mm (2ft 4in) x H1930mm (6ft 3in); folded - H265mm (10.4in) |
| Power | Linear Actuator 12V 25 Amp |
| Lift Cycle | Appx 50 average lift cycles per charge |
ACCESSORIES
Strap Frame
Forklift Attachment
Glass Sucker
FAQ
VIDEOS
BE SOCIAL
- There has to be a better way to lift heavy objects
- Back injuries from lifting
- Being able to lift heavy materials in and out of my vehicle
- Innovative design allows one person to lift up to 140kg
- No license required
- Multiple attachments allows you to lift various heavy objects easily
- Easy to transport and store
- Safer more efficient working environment
- Reduced workplace injuries
- Staff efficiency, three person job now a one person job
